Description
High-Efficiency Commercial Mixing Solution for Roasted Coffee Beans, Granules & Powders
1. Product Overview

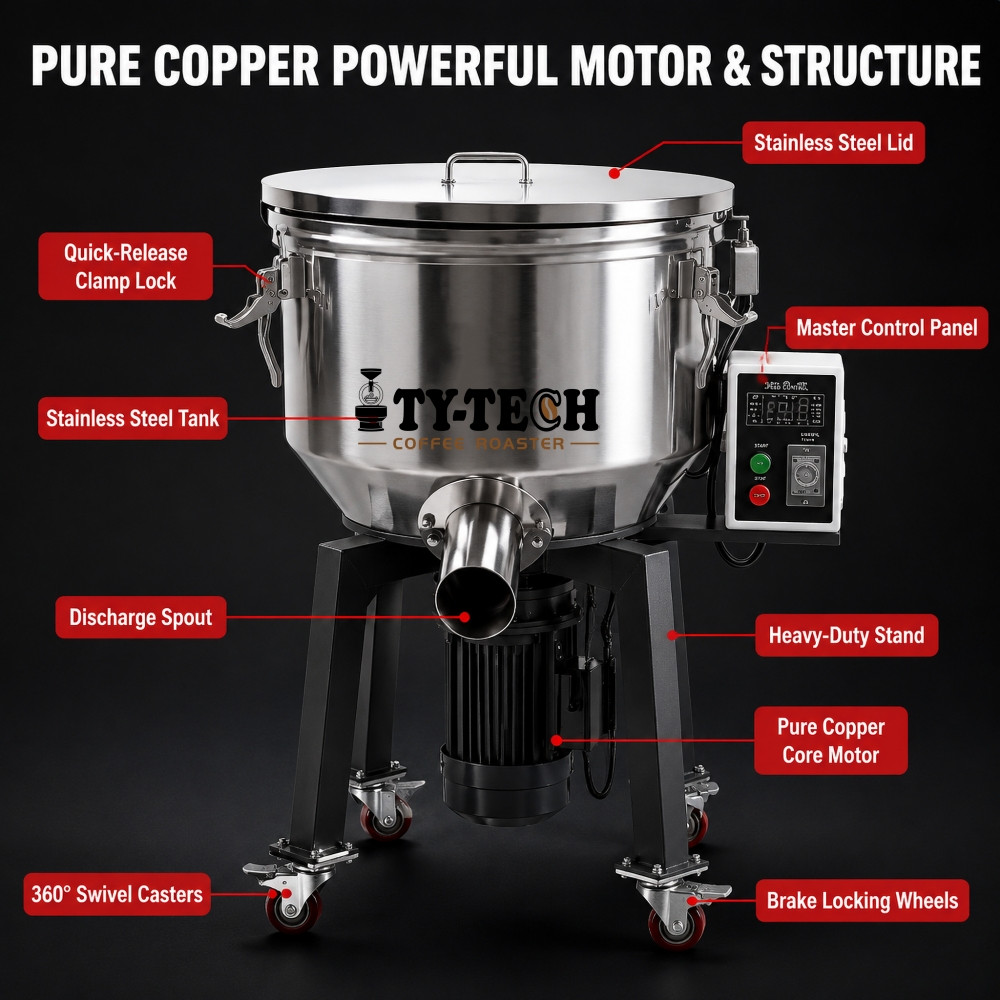

The TY-TECH Vertical Industrial Mixer is a heavy-duty, high-performance blending machine engineered specifically for the specialty coffee, food processing, plastics, and agricultural industries. Built with premium SUS304 food-grade stainless steel and driven by a 1500W pure copper high-torque motor, it delivers fast, gentle, and 360° homogeneous mixing without breaking or damaging fragile materials like roasted coffee beans.
Equipped with an intelligent 0–30 minute auto-timer control, an airtight quick-release lid clamp, and a residue-free bottom discharge chute, this machine significantly enhances batch processing efficiency, guarantees consistent product quality, and minimizes labor costs for commercial roasteries and production facilities.
2. Key Applications
Specialty & Commercial Coffee Processing• Whole Bean & Ground Blending: Perfect for creating signature house blends, espresso formulas, and post-roast homogenization with zero bean breakage.
• Flavored Coffee Infusion: Uniformly disperses flavoring oils, extracts, and aromatic additives across bean surfaces without clustering.
Food & Agricultural Products
• Grain, Seed & Botanical Blending: Gentle and thorough mixing of nuts, grains, pulses, seeds, botanical herbs, and tea leaves.
• Dry Powder & Premix Blending: Rapid dispersion for nutritional powders, seasoning mixes, bakery pre-mixes, and spices.
Industrial & Chemical Granules
• Plastic Pellets & Masterbatch: Fast, uniform dispersion of color masterbatches, raw polymer pellets, and compounding additives.
• Agricultural & Feed Additives: Homogeneous blending of micro-nutrients, feed premixes, and granular chemical formulations.
3. Key Features
1. Food-Grade SUS304 Stainless Steel Construction: The entire mixing chamber, barrel cover, and stirring blades are crafted from certified 304 stainless steel. The mirror-polished interior prevents residue buildup, resists corrosion, and ensures rapid sanitization.
2. 1500W Pure Copper High-Torque Motor (30 RPM): High-efficiency copper-core motor delivers robust torque under full load (~50kg roasted beans). Calibrated gentle rotation speed (30 RPM) protects bean integrity and avoids crushing.

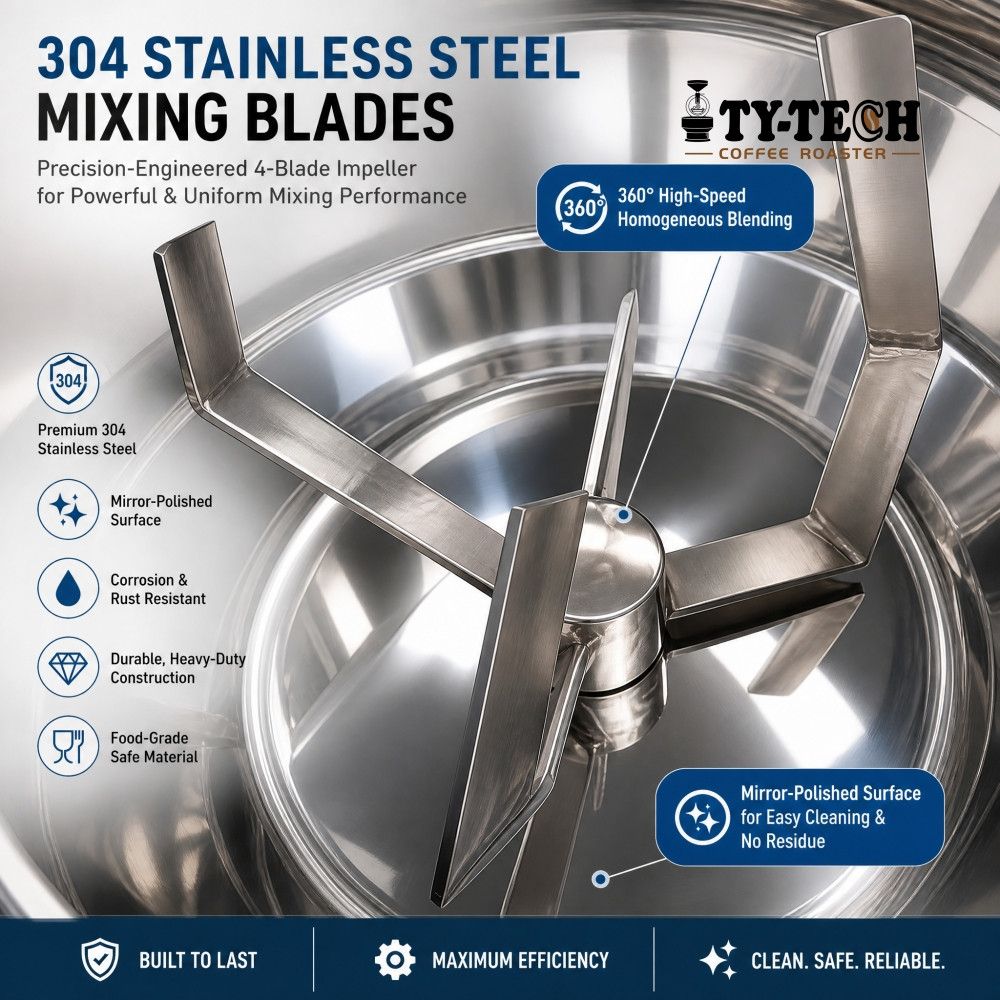

3. Heavy-Duty 4-Blade Spiral Impeller: Specially curved 4-blade impeller creates a continuous 3D fluidized vortex, lifting and folding material from bottom to top for complete homogeneity within 3–5 minutes per batch.

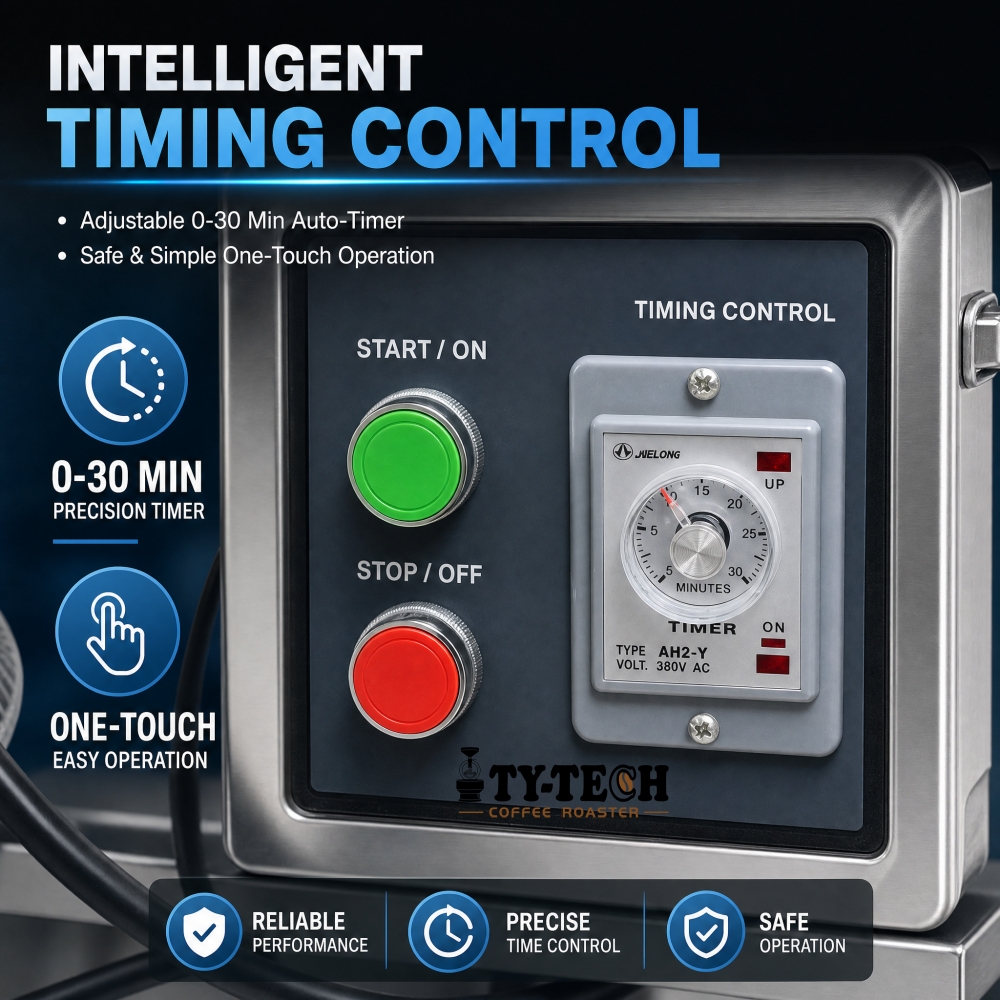

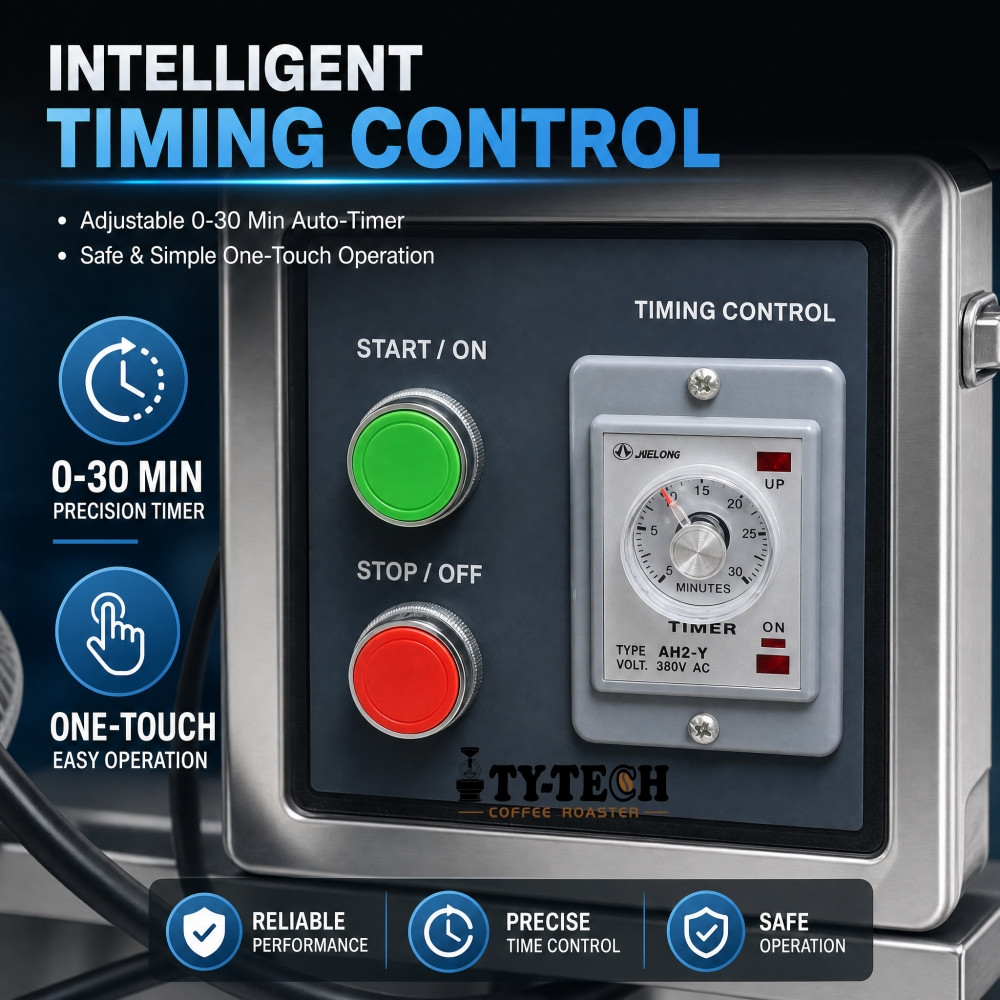

4. Intelligent Control Box with 0–30 Min Auto-Timer: Features intuitive one-touch push buttons (START / STOP) and an adjustable rotary timer. Automatically shuts down upon completion, freeing operators for other tasks.

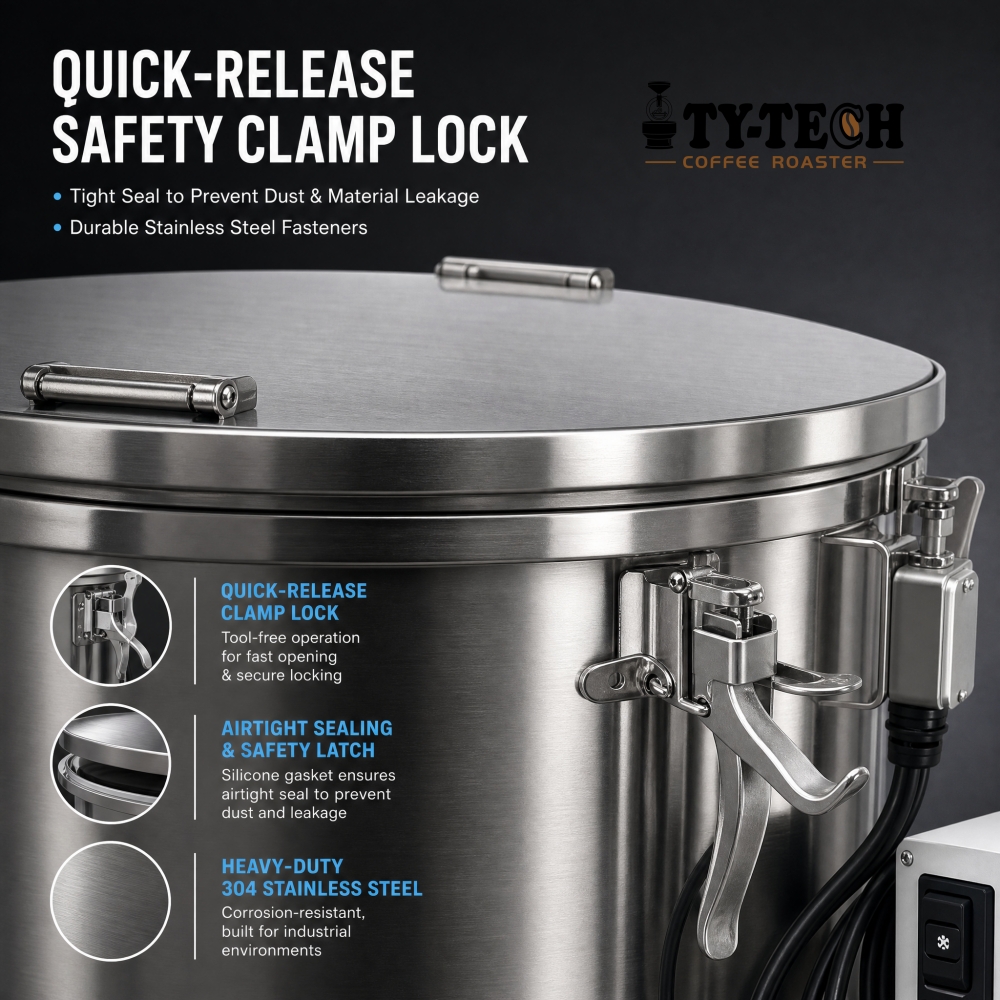

5. Airtight Quick-Release Safety Clamp Lock: Heavy-duty tension latch clamp and food-grade silicone seal prevent dust leakage and spillage during high-speed blending, maintaining a clean workshop.
6. Fast Bottom Discharge Chute with Valve Handle: Ergonomic manual lever valve allows instant, controlled emptying directly into collection bins or transport carts with ~400mm floor clearance.
7. Mobile Stand with 360° Locking Swivel Casters: Four heavy-duty swivel wheels allow effortless one-person relocation between roasting, degassing, and packaging workstations, equipped with dual step-down brakes for vibration-free stability.

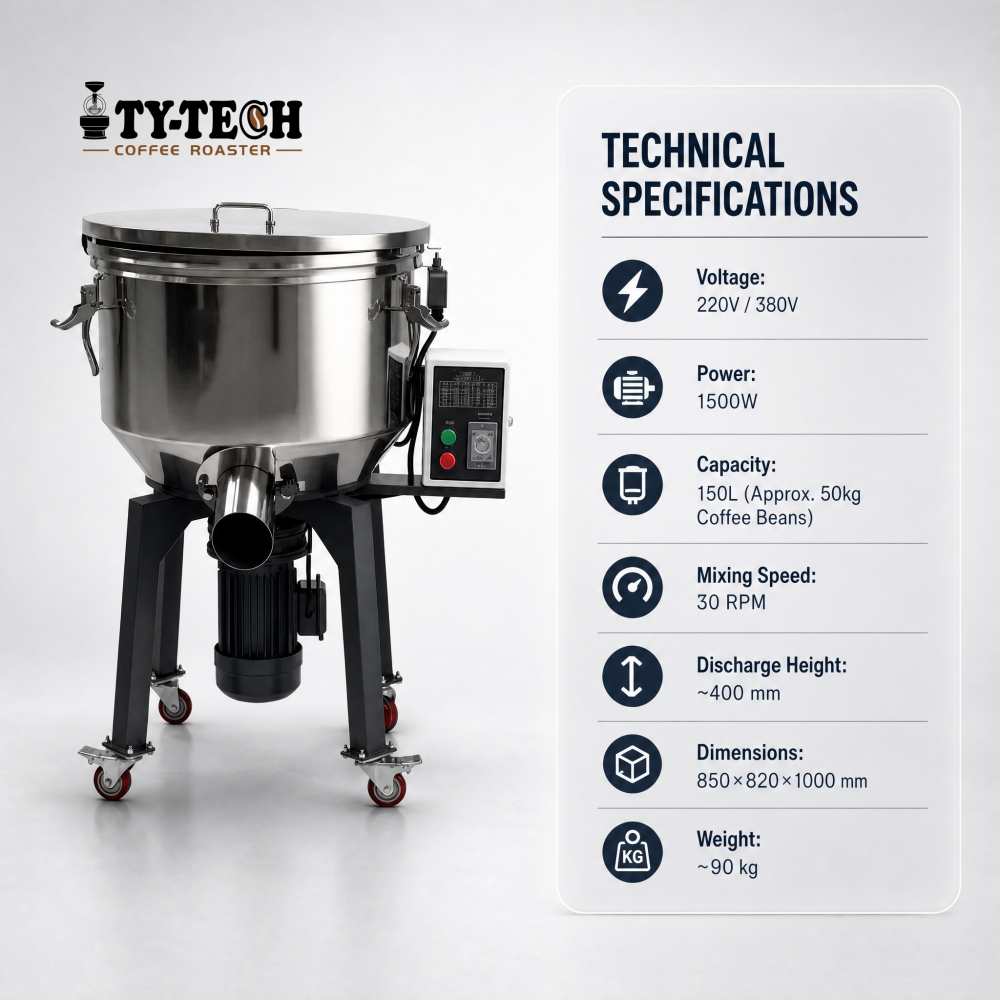

4. Technical Specifications
5. Details display
welcome to contact us to get more information and best quotation, EXW/CIF/DDP terms.
Email：info@tyroaster.com, whatsapp: +86 15302078938
