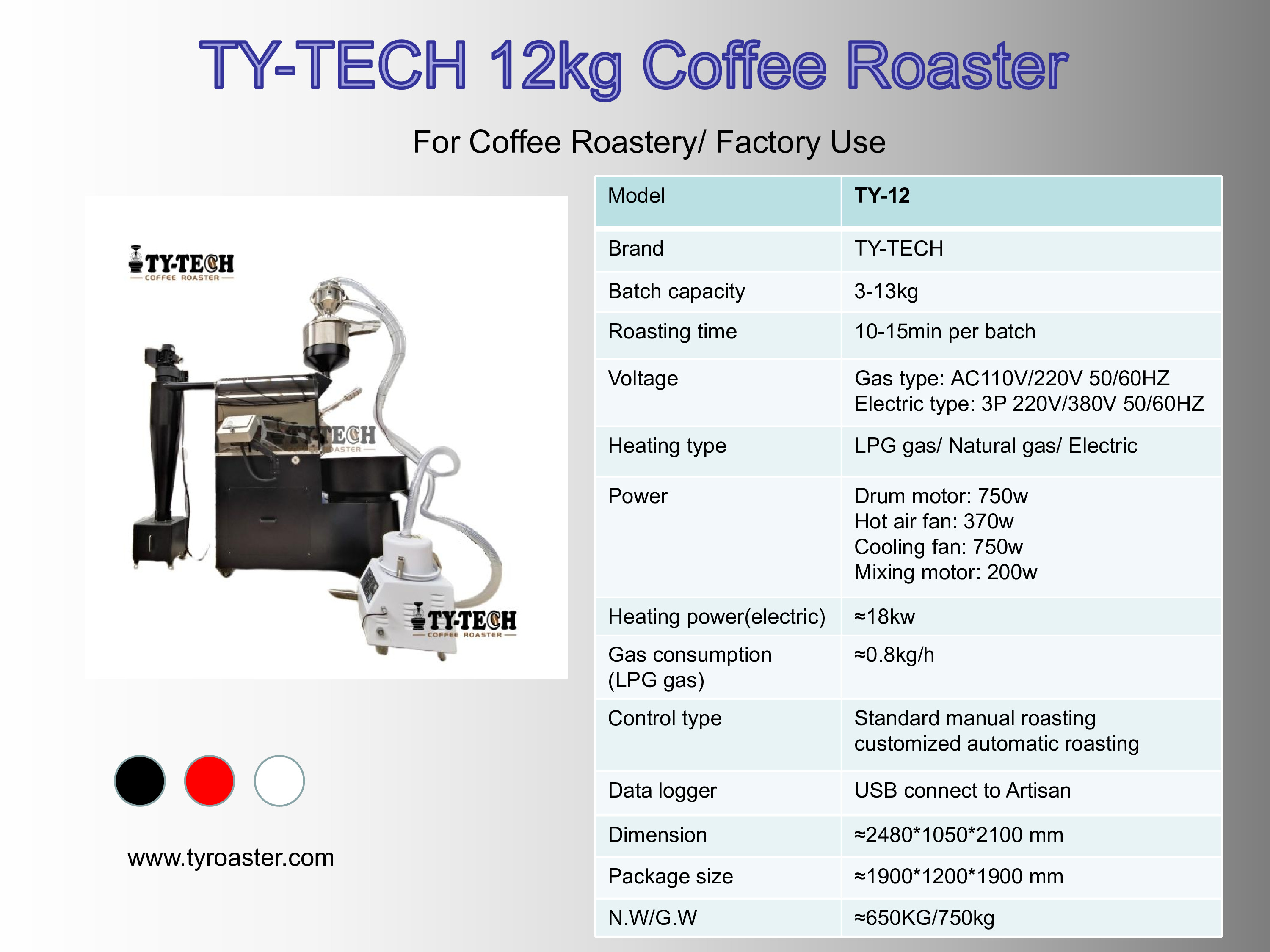

TY-12 smart 10kg 12kg coffee roaster Gas/Electric coffee roasting machine

√ Professional commercial use Drum coffee roaster , with cooling tray and exhaust system

√ World leading Hot air and Direct fire heating method

√ Precisely BT ET temperatures display(with top brand PT-100 thermocouple)

√ Drum  rotate speed&&Heating adjustable, and Digital stepless digital Hot air flow adjusting, It allows for different types of coffee and different coffee roasting techniques

√ 100% Electric/LPG or Natural gas heating types

√ USB connect to Artisan software

1. Control type

Standard is Manual control type, but we highly recommend the automatic control type roaster, it will perfectly repeat roasting, keep same quality every time, Intelligent and efficient.

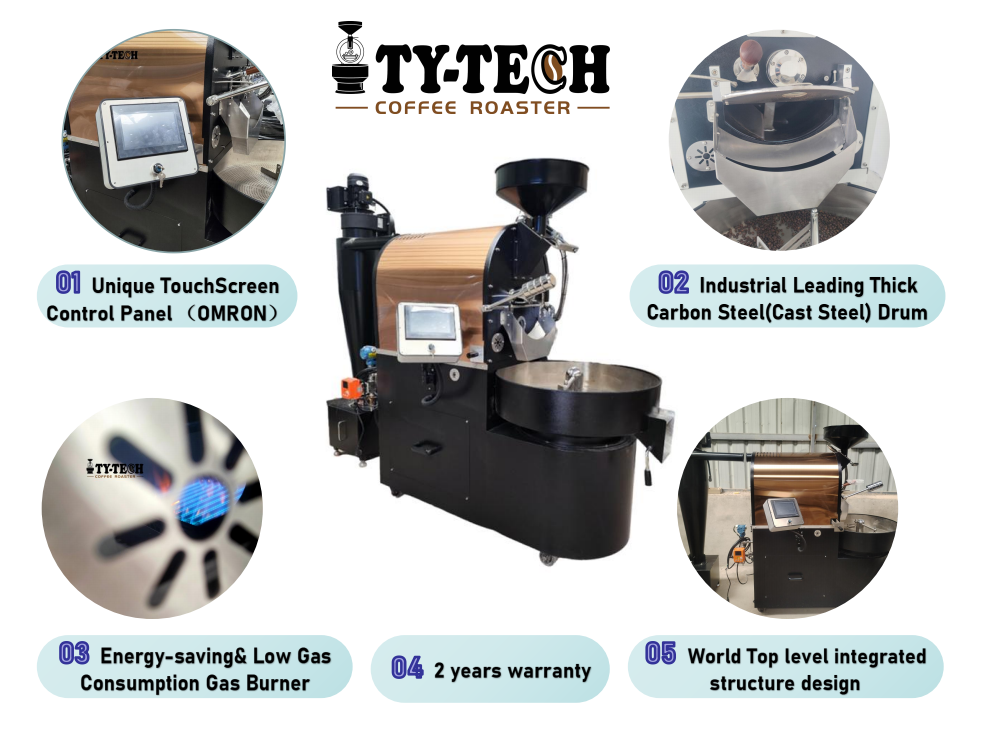

2. Control panel

Japan Top brand OMRON Brand touchscreen

The TY roaster use PLC touch screen panel , just like using a smartphone, the operator can clearly see the ongoing operation, this makes our roaster very easy to use.

For TY-6kg coffee roaster,We upgraded with an adjustable rocker arm to connect the control box to the roaster body, allowing the operator to adjust the height and direction of the control panel according to their height and roasting needs.

3. Drum material

TY-6 apply higher quality industrial level carbon steel material drum(which others also called cast steel),

This material has properties that are very similar to cast iron, but its production process is simpler than cast iron, with good insulation and lower thermal expansion and contraction coefficients than stainless steel, making it less prone to deformation. This is the optimal coffee roaster drum material.

*Double-layer Blade Design of Drum: Increased the output speed roasted coffee with homogeneous heating.

4. Heating elements

For gas heating type roaster, here are LPG gas or natural gas options. The professional top-brand Atmospheric gas furnace has low emission and higher heating efficiency. the gas consumption is very small.

For electric heating type roaster, we apply CE certificated heating tubes(stainless steel tube), which is higher efficient and heating fastly, and we also provide one more as spare part.

5. Integrated structure

Our roaster machine's smoke exhaust or cooling systems are highly integrated, or connected through hard pipes, so the machine nearly no needs to be installed. It can start roasting with just a few screws, which is very convenient for maintenance and cleaning.

6.Double roasting curves modes

Our roaster can connect to Artisan by USB cable.

And we have own roasting profile interface on the touch screen, even not connect to Artisan, you can mark important roasting steps with time and BT temperature(charge->dry end->FC start->FC END->SC start->SC end->drop)

7. Special designs

One-step warmup roaster function(you can set preheating temperature as you need)

Automatic stop heating function at maximum temperature(safety protection)

Casting Front Cover of Drum: Overheating spot is prevented from front cover.

Increased Drum Insulation: It was ensured that the internal energy was protected by using heated air efficiently.

8. Additional services

For our distribution agent, we can provide logo service freely, it’s easy to promote in local market.

We provide customized services, such as machine color, material, or roaster appearance.

We provide 2-year warranty, this is much longer than other company. and Agents don't have to worry about inventory and quality issue. And we have own factory and technical team, so we promise to provide whole-life technical services.

√ ET BT temperature data logger to Artisan software. (you can connect the roaster to your computer for reacording and monitoring the roasting profile)

√ Chaff cyclone collector with fan. (for collecting the coffee beans silver skin/chaff and duct when roasting)

√ Foodgrade stainless steel cooling tray with power cooling fan and mixing motor (rapidly cooling coffee beans in 1-2minutes)

√ Gas tank pressure regulator for Gas type TY-2 roaster

√ One more pcs of heating tube for electric roaster as spare part

1. Hot air pressure gauge

2. Free logo design service

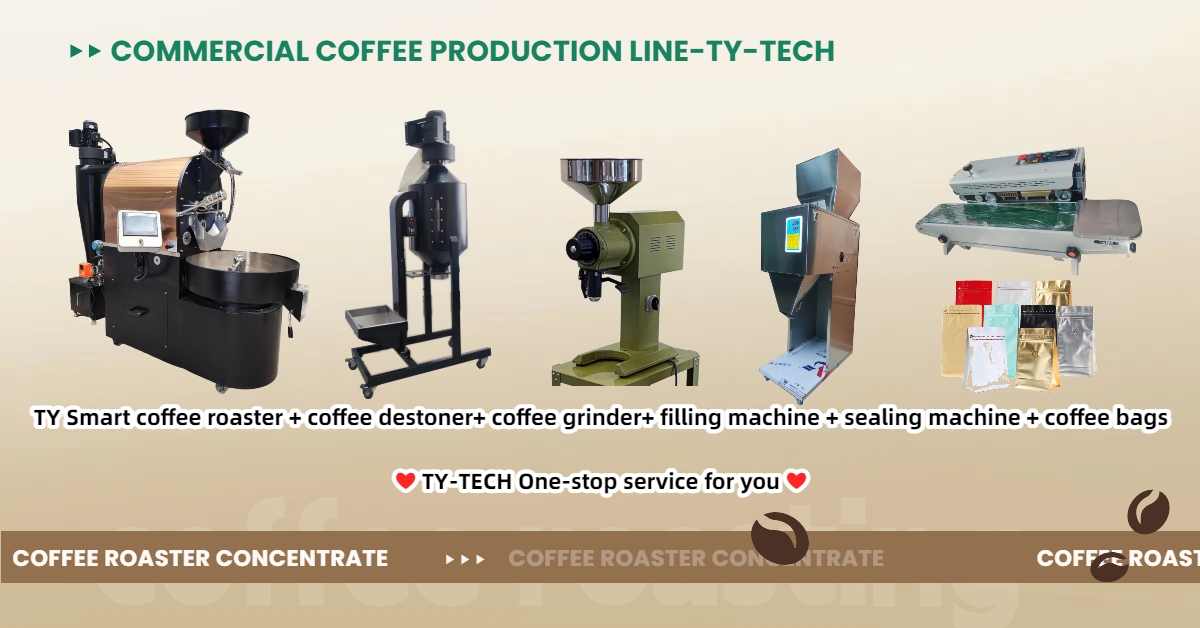

3. Matched coffee grinder, coffee packing machine, coffee color sorter machine, coffee destoner, ESP smoke filter, professional afterburner, bags sealer,espresso coffee machines, etc

welcome to contact us to get more information and best quotation, EXW/CIF/DDP terms.

Email：info@tyroaster.com, whatsapp: +86 15302078938
